Hillside Residential Development
Premium view lots where the buildable envelope sits well below natural grade, and excavation has to advance with structural support before vertical construction can begin.
Inland Geotechnical Services
Shoring Systems
J.C. Baldwin provides shoring systems for steep hillsides, constrained urban sites, deep excavations, and projects where adjacent improvements must be protected as construction proceeds.
Why It Matters
Shoring Systems in California
Shoring systems support excavation and protect surrounding structures, improvements, and work areas while new construction moves forward. Without properly built shoring, excavation in difficult sites can put adjacent buildings, utilities, and site stability at risk.
Common Conditions
- Deep excavations require structural support before vertical work can begin
- Tight urban parcels leave little room for error during site work
- Hillside development demands excavation support coordinated with slope conditions
- Neighboring buildings or improvements must be protected throughout construction
Our Approach
How Baldwin Gets It Done
J.C. Baldwin works with engineers, developers, and owners to construct excavation support systems that fit the realities of the site. This includes understanding limited access, steep terrain, neighboring improvements, and the practical requirements of building safely in dense or difficult conditions.
Methods & Capabilities
Tieback Shoring Walls
Soldier Pile and Lagging
Sheet Piling
Secant Piles
Why J.C. Baldwin
Why Owners & Engineers Choose Baldwin
A contractor comfortable where slope conditions and excavation support overlap
Experience with difficult staging, neighboring structures, and tight access
Field judgment that helps maintain safe, buildable excavation sequences
Common Patterns
Where Shoring Systems Shows Up
The site conditions and project types where shoring systems is the right call across California.
Coastal Infill
Strand-front and bluff-top projects where adjacent residences, public access, or coastal structures must remain in service while a new building goes in.
Tight Urban Parcels
Properties where the entire usable footprint is the excavation footprint, and the shoring wall is essentially the property line shared with neighboring buildings.

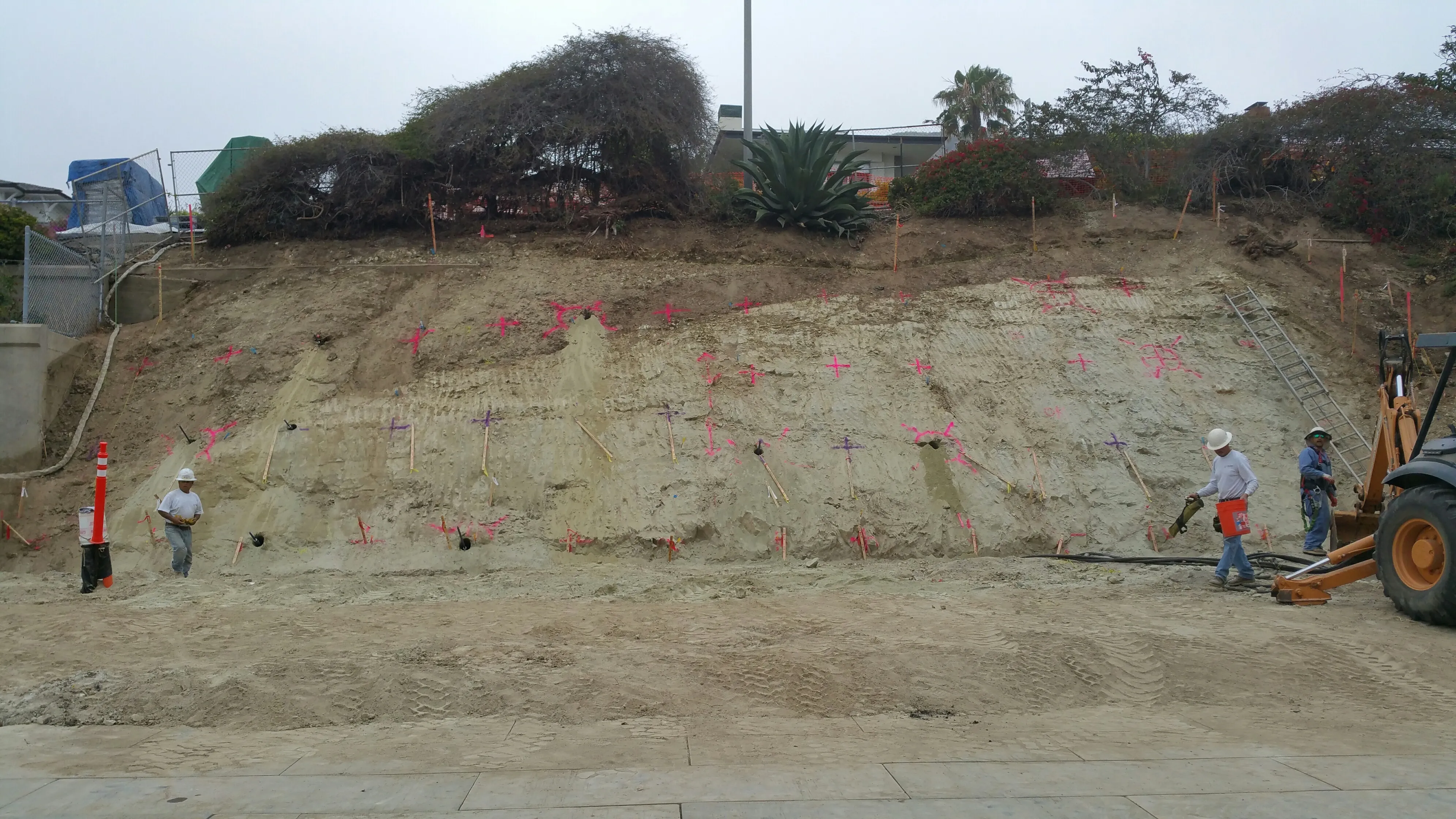

Institutional & School Sites
Athletic fields, parking, and ancillary structures built next to existing campus buildings that cannot tolerate movement, vibration, or ground loss during excavation.
Hybrid Shoring & Retaining
Projects where the same wall is doing structural shoring duty during construction and slope stabilization or retaining duty afterward, sized for both phases.
Hillside Site Development
Multi-residence parcels where excavation, grade beams, caisson foundations, and tieback walls have to be coordinated as a single, buildable sequence.
What the Work Involves
Scope Elements in the Field
The systems and elements J.C. Baldwin self-performs on a typical shoring systems project, and what each one does.
- Tieback Shoring Walls
- Soldier piles or shotcrete facing post-tensioned back into competent ground behind the cut, used where bracing is impractical and where neighboring improvements cannot tolerate deflection.
- Soldier Pile & Lagging
- Drilled piles placed at spaced intervals with timber, steel, or shotcrete lagging spanning between, often the right answer for hillside cuts and moderate excavation depths.
- Sheet Piling
- Driven steel sheets used where soils permit and where cutoff against groundwater is helpful, particularly along the coast and at sites with shallow water tables.
- Secant Piles
- Overlapping drilled piles forming a continuous wall, used where stiffness, water cutoff, or proximity to sensitive structures justify the additional cost over conventional shoring.
- Soil Nails & Shotcrete Facing
- Closely spaced grouted nails with reinforced shotcrete used for cut slopes and shoring conditions where a tied-back wall is over-engineered for the application.
- Caisson Foundations & Grade Beams
- Cast-in-place caissons and grade beams that often accompany the shoring scope, transitioning the temporary excavation support into permanent structural support.
Coverage
Where Baldwin Performs This Work
J.C. Baldwin self-performs shoring systems throughout the company's California service area, from San Diego through San Francisco, with deep experience in hillside residential, coastal infill, and tight urban excavation support.
See the full service areaSouthern California

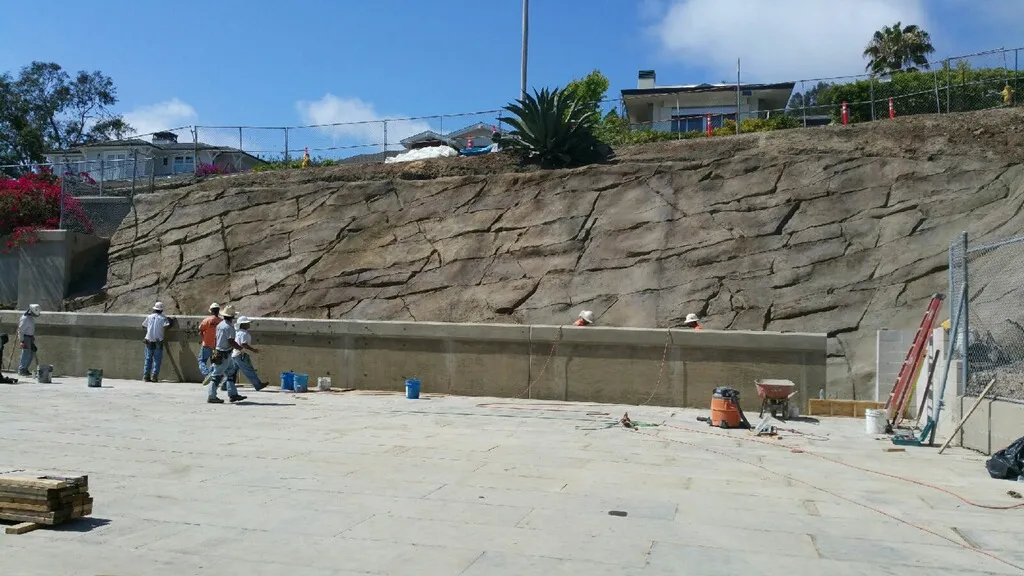

- Laguna Beach

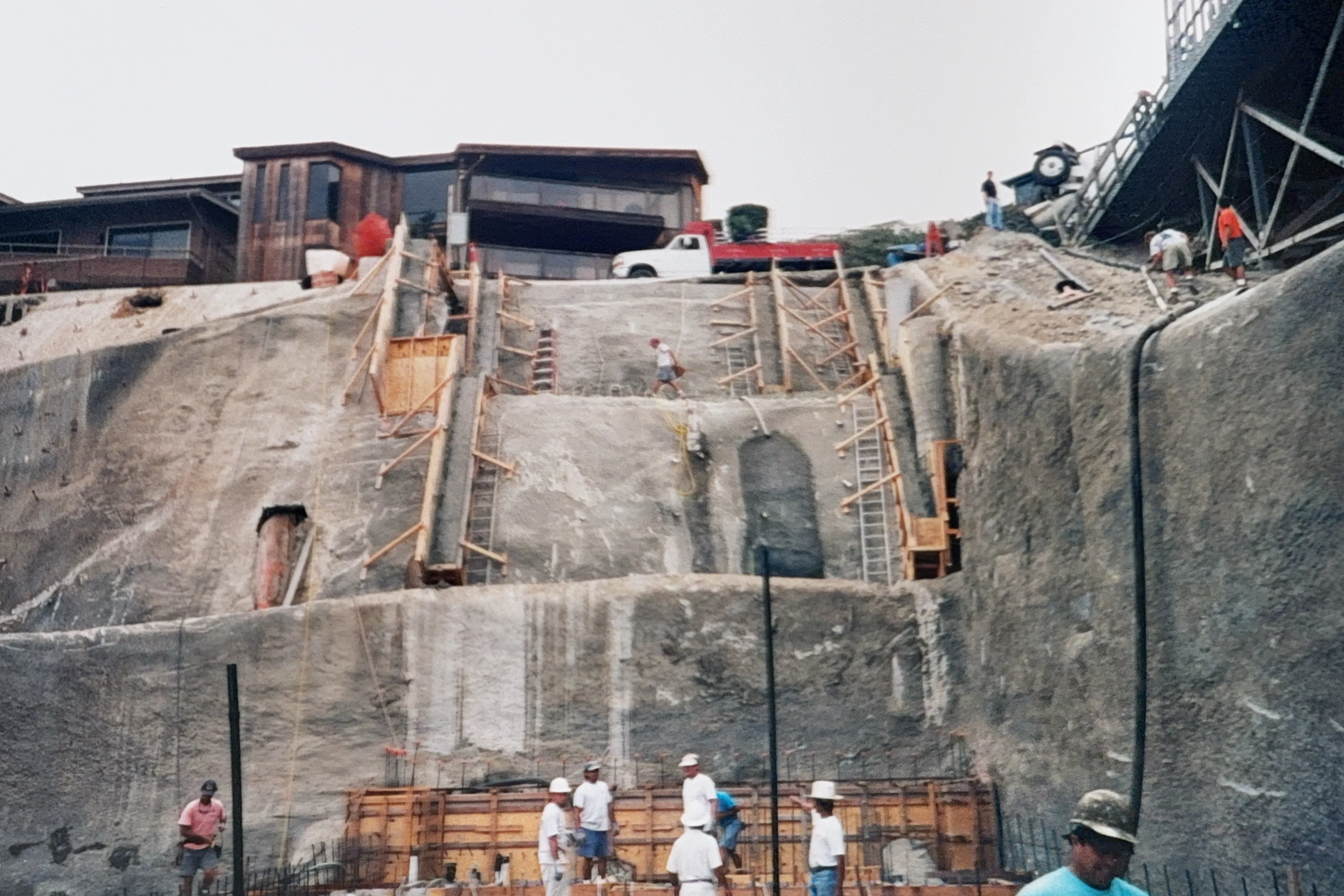

- Three Arch Bay

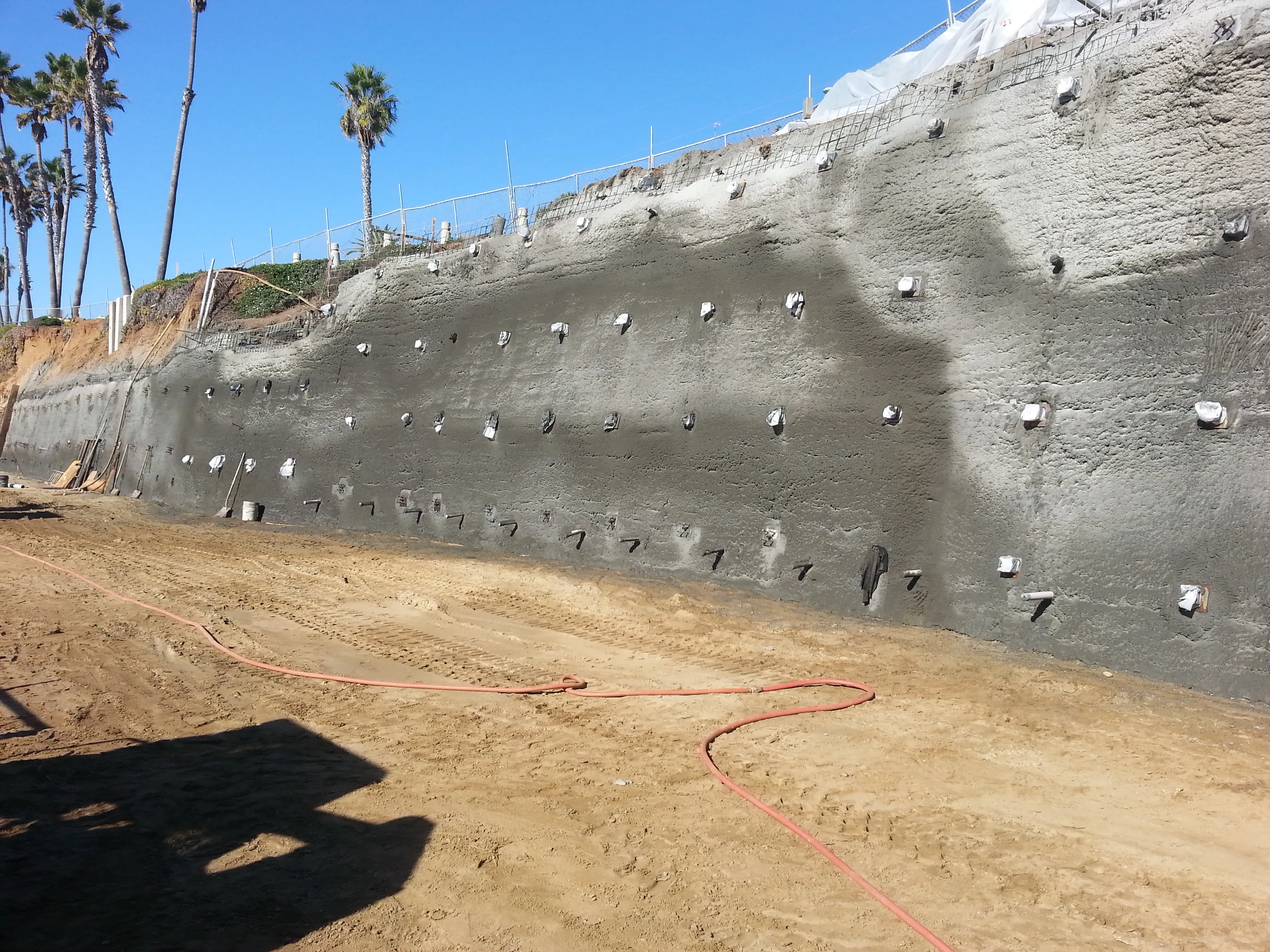

- Oceanside
- Carlsbad
- Del Mar
- La Jolla
Central Coast
- Pismo Beach
- San Luis Obispo
Northern California
- San Francisco
- San Mateo
- Santa Cruz
In the Field
