Bulkhead & Tieback Repair

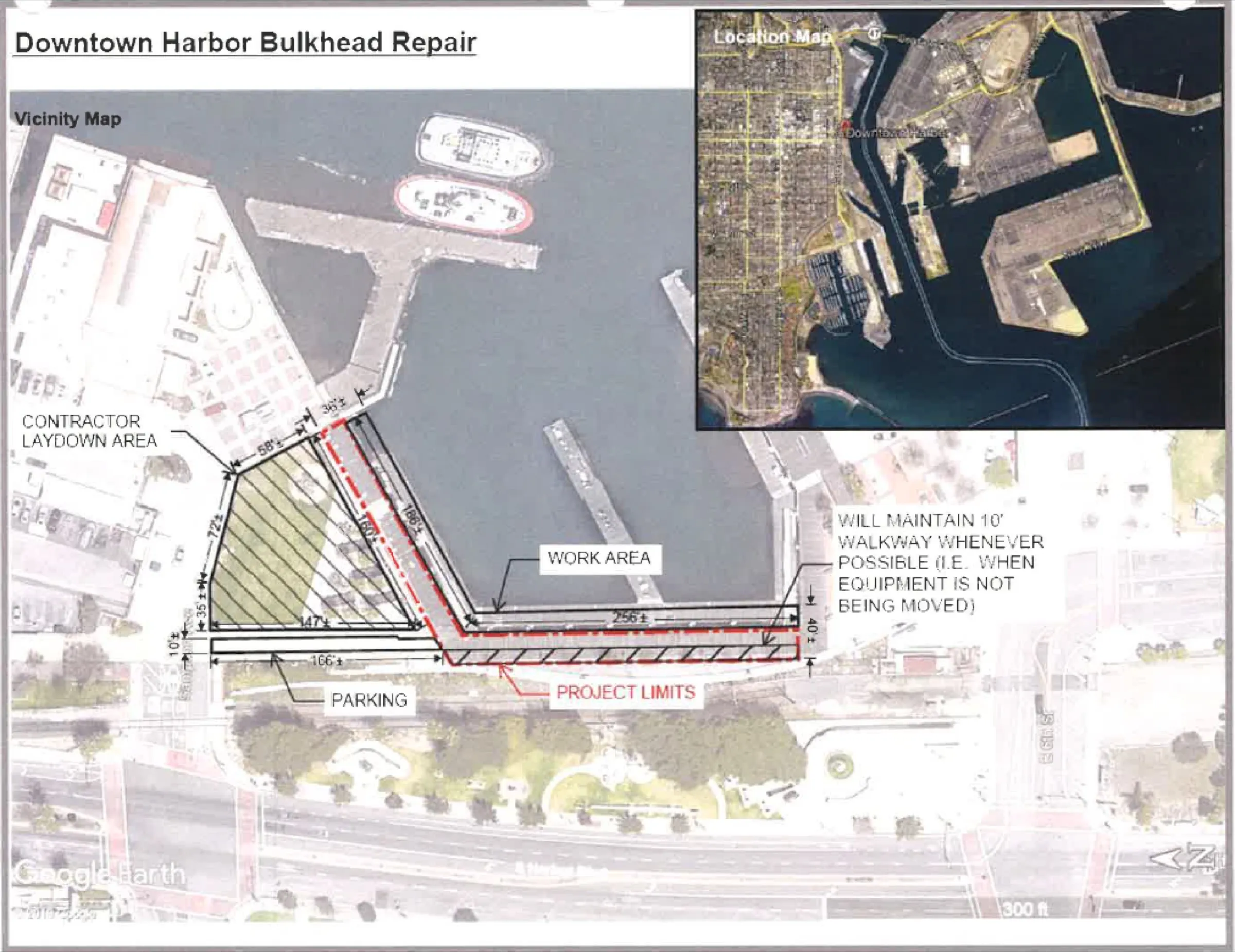

Port of Los Angeles Bulkhead Repair
Port of Los Angeles, California
Board-mandated bulkhead wall repair including sub-slab demolition, soil removal, slurry replacement, new slab construction, tieback installation, and full boardwalk replacement.
The Problem
Site Conditions That Drove the Work

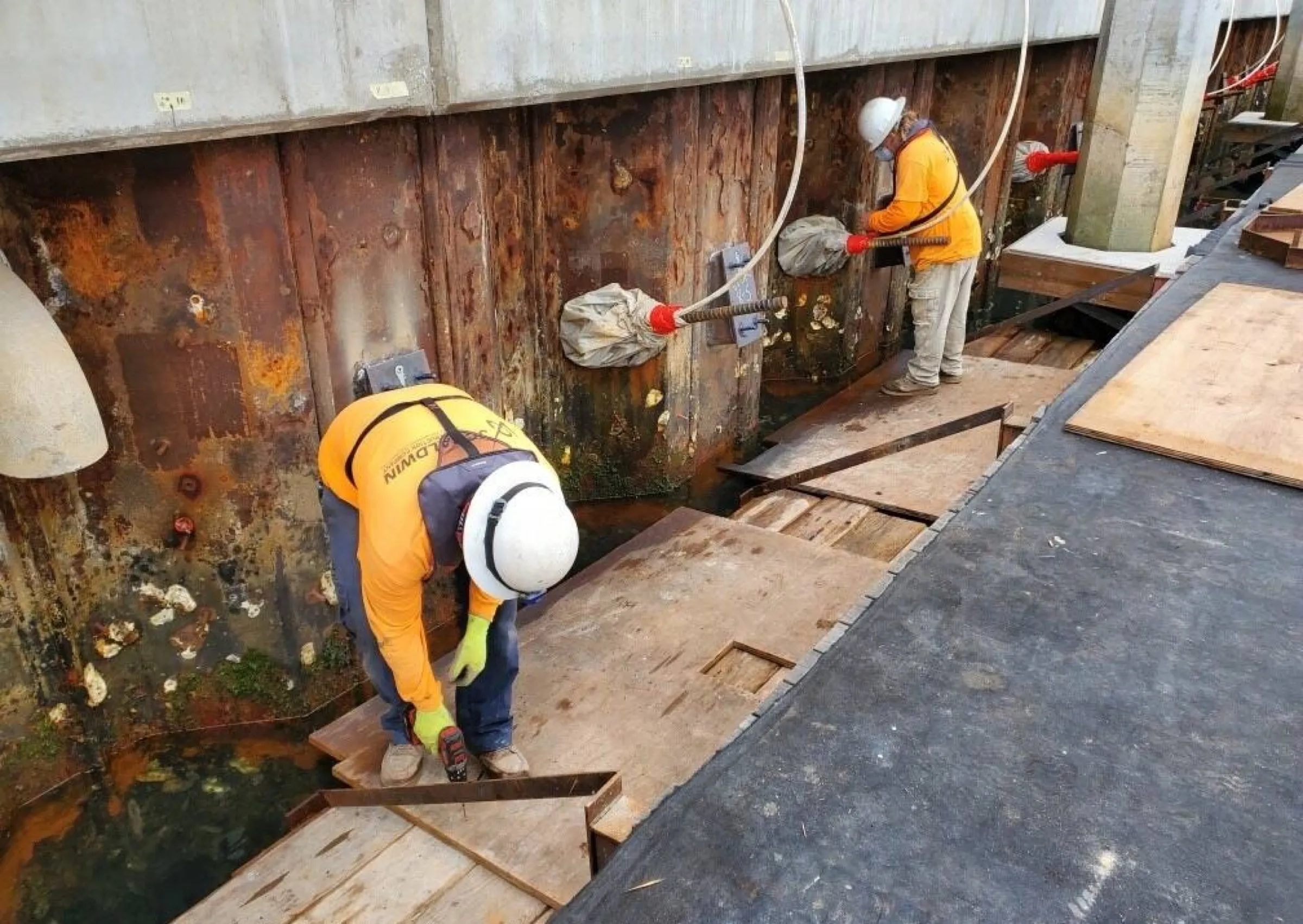

The Port of Los Angeles required board-mandated repairs to existing bulkhead walls and the adjacent boardwalk. The existing concrete sub-slab and underlying soils were degraded, and the structural system tying back the bulkhead needed to be re-established to bring the asset back into compliant, long-term service.
The Solution
J.C. Baldwin demolished and removed the existing concrete sub-slab, excavated the compromised soils, and replaced them with engineered slurry. A new structural slab was poured in place, and 66 tiebacks were installed to anchor the bulkhead system. The boardwalk above was then reconstructed to restore public access.
Outcome
The repair returned the bulkhead and boardwalk to operating condition in a sensitive, high-visibility waterfront environment. The completed work satisfied the port board's mandated scope and re-established a structural system suited to the long-term operational demands of the harbor.
Owner
Port of Los Angeles
Driver
Board-mandated repair
Tiebacks
66 installed
Scope
Sub-slab, slurry, slab, boardwalk
Project Gallery
Problem, Solution, and Site Conditions in the Field
